SmartCam

A Small but
Mighty AI Camera

open 3d button

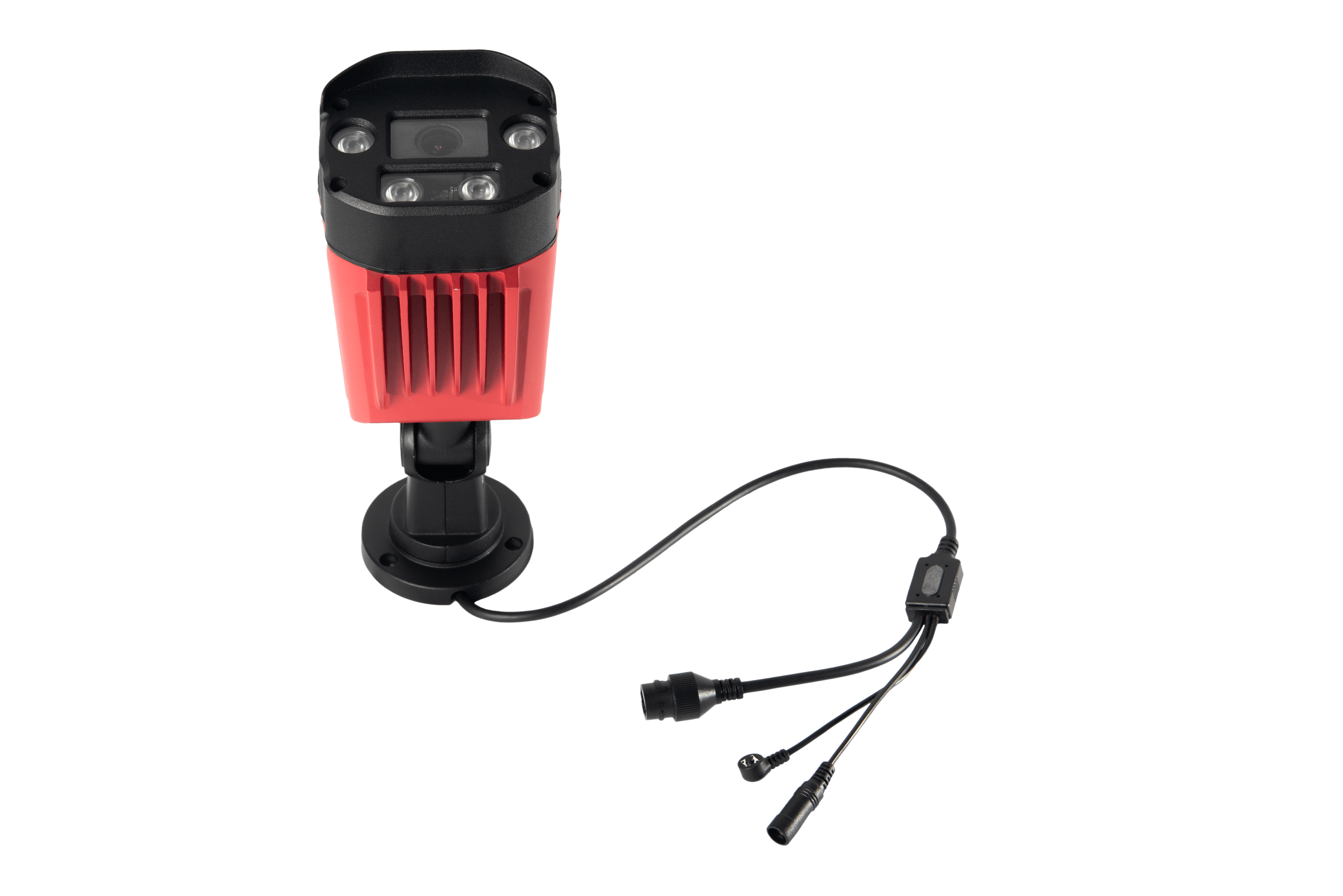

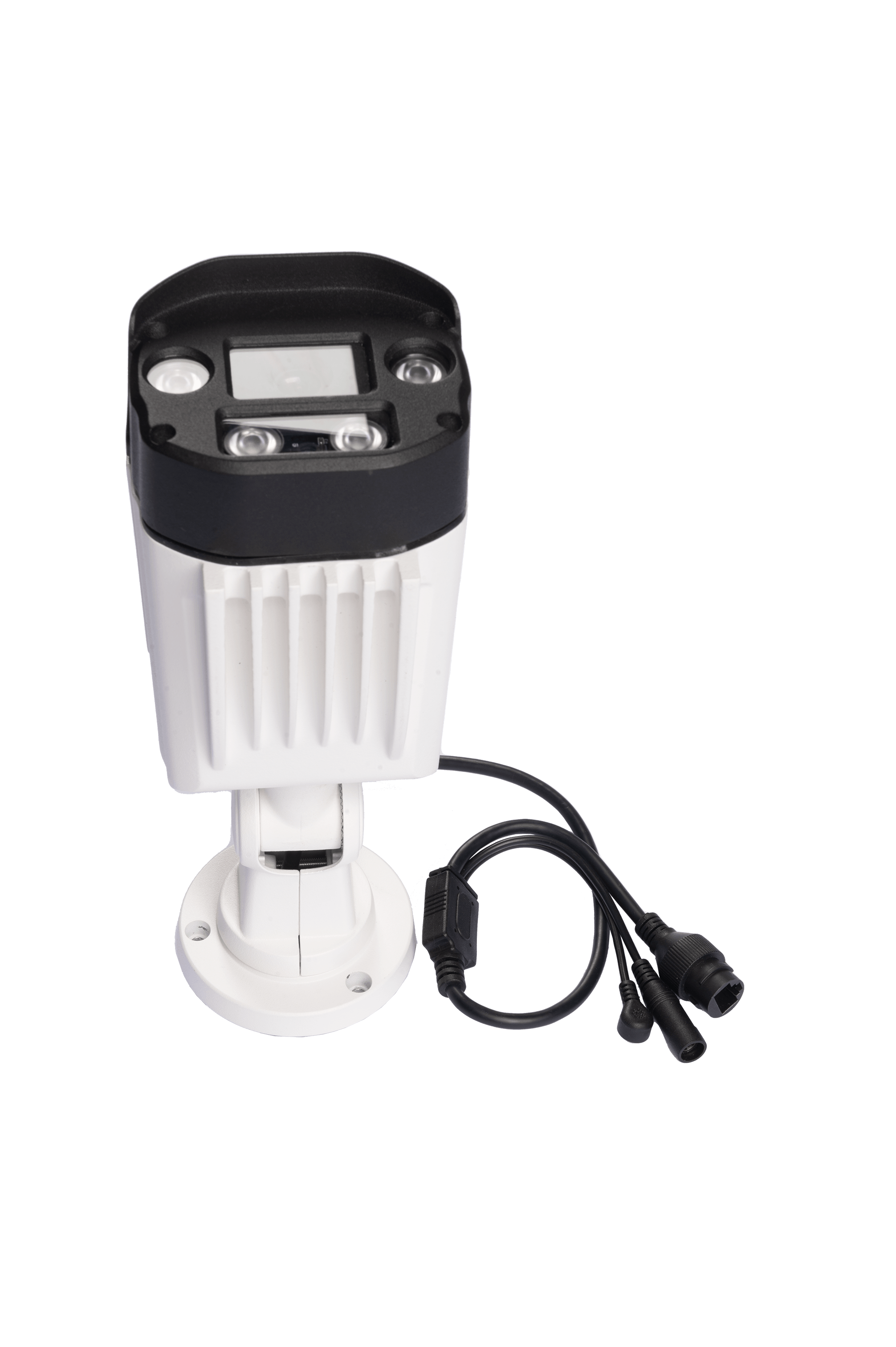

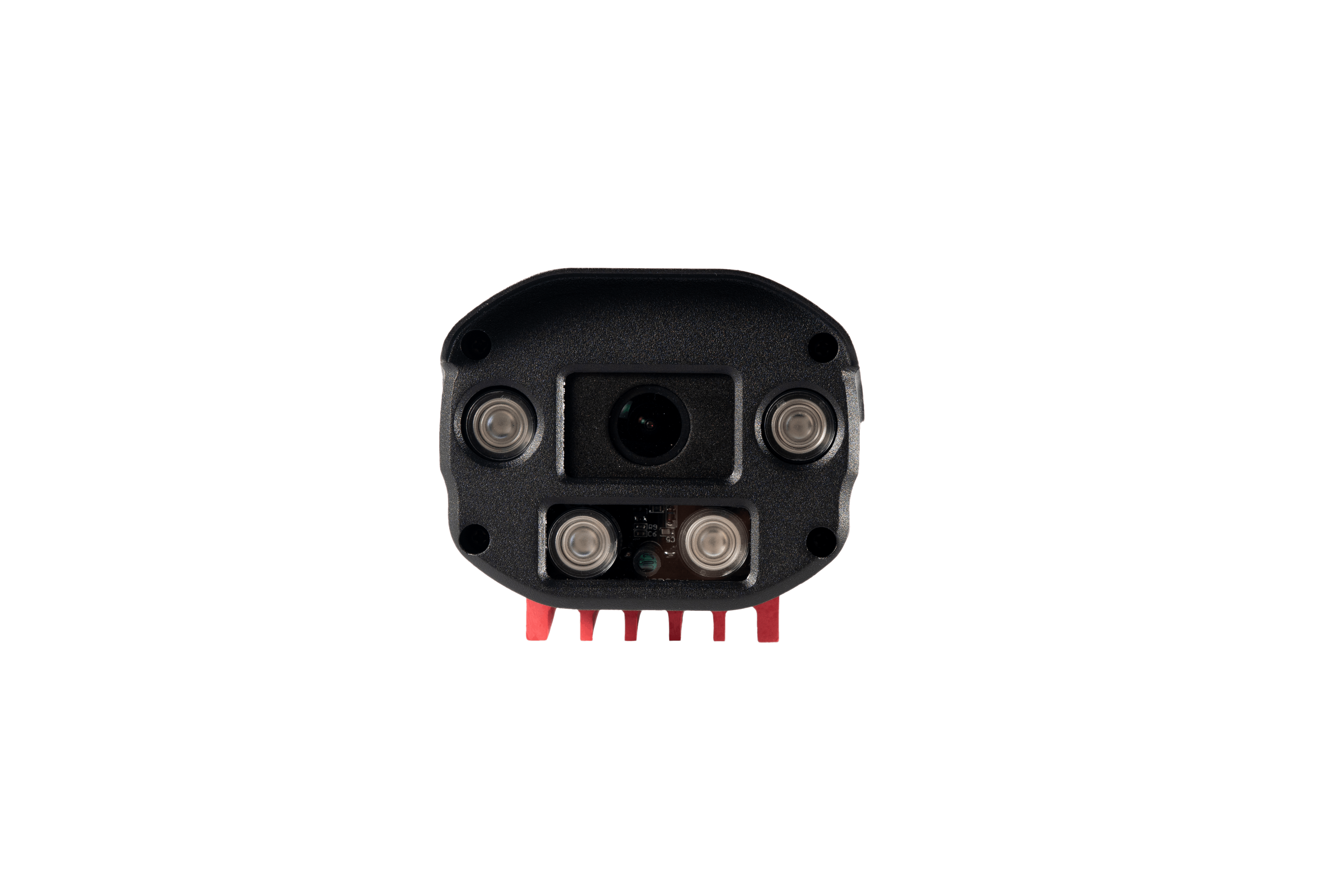

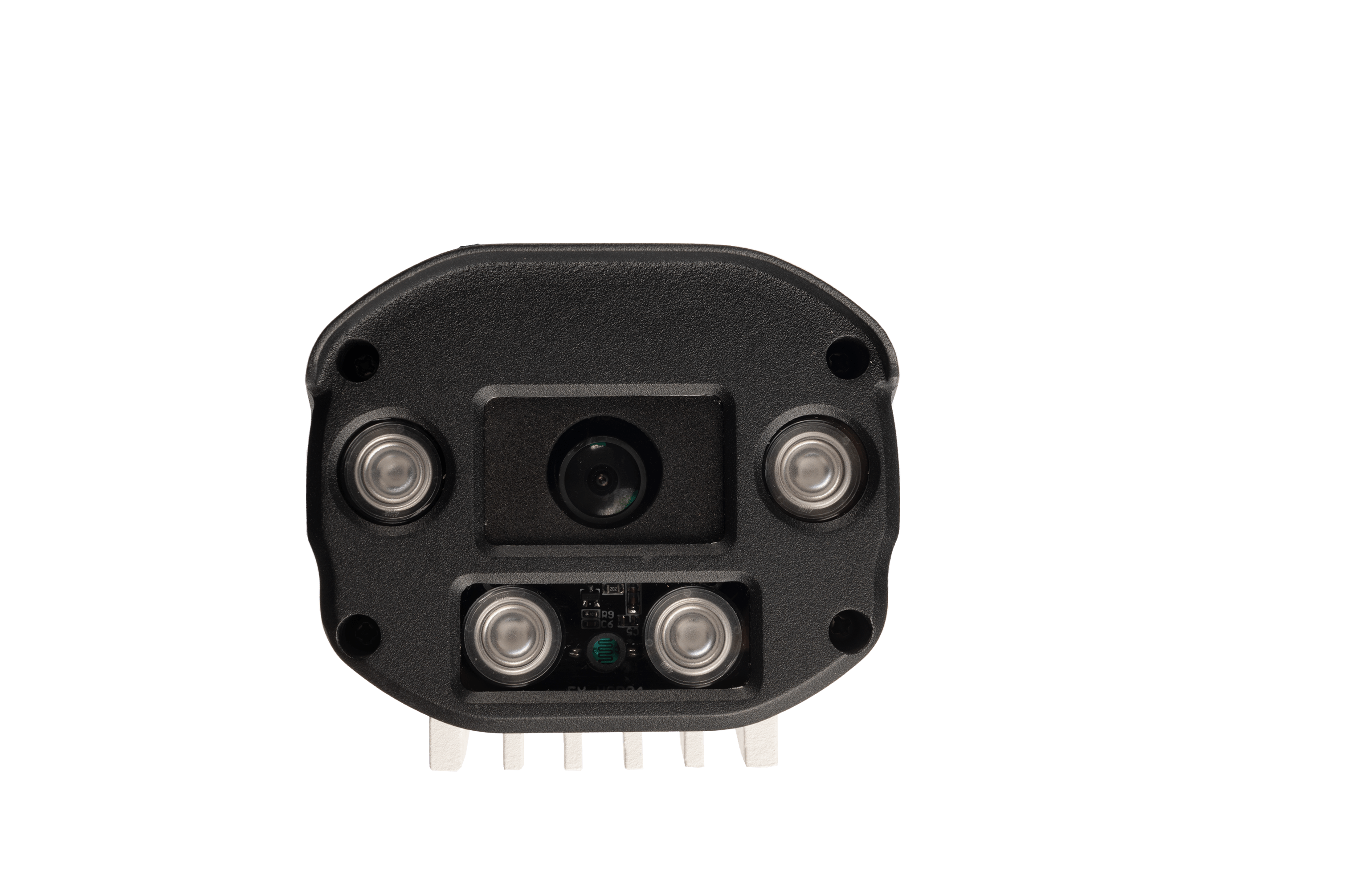

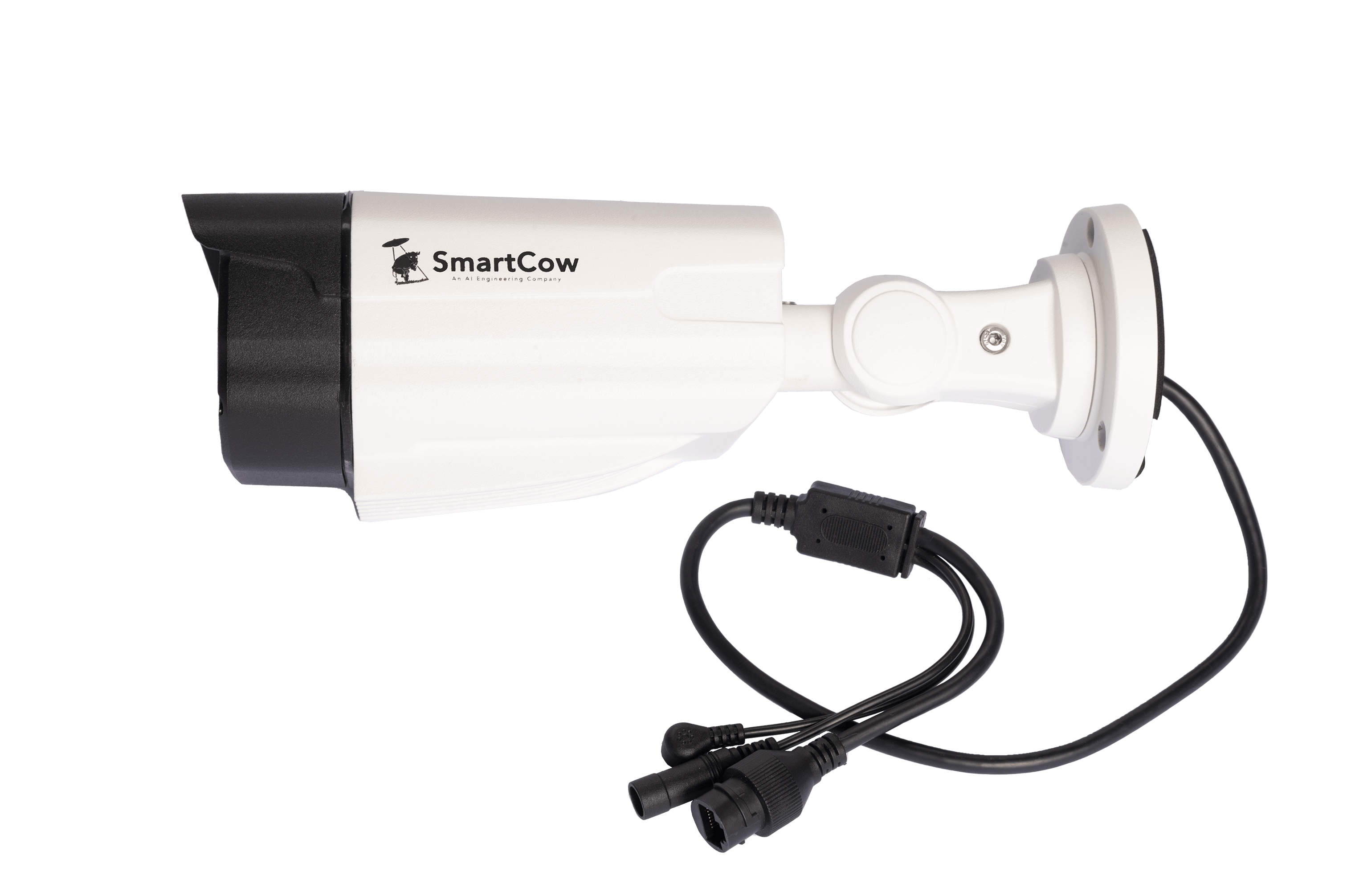

SmartCam

A small but mighty AI camera

About SmartCam

SmartCam is an AI camera with high-resolution sensors for AIoT embedded systems, smart retail, and beyond. SmartCam presents a comprehensive all-in-one solution that seamlessly integrates an advanced AI platform with cutting-edge camera sensors. Unlock the potential for automated optical inspection, smart factories, and more, as SmartCam's high-resolution sensors redefine video analytics capabilities.

Enhancing Operations with AI-Driven Video Analytics

Empower operations with the transformative capabilities of AI-enabled video analytics, delivering efficiency gains and heightened safety measures across diverse industries.

Unmatched Performance in Any Environment

Experience unparalleled performance that transcends environmental challenges. Meticulously engineered compact and rugged design ensures optimal functionality, regardless of the setting, providing the reliability on demand.

Effortless Functionality for Seamless Use

Simplify process with plug-and-play functionality. Seamlessly incorporate existing framework, reducing installation complexities and costs. This streamlined approach not only minimizes operational disruptions but also maximizes user adoption, ensuring you reap the benefits without unnecessary hurdles.

Revolutionize with Integrated End-to-End System

Developed on an open platform foundation, it slashes deployment and maintenance costs by an impressive 50%, offering a substantial return on investment. Embrace a future where enhanced operational efficiency meets cost-effective excellence.

Highlighted Features

Hardware

5MP CMOS Rolling Sensor

Shutter Sensor

128GB mSATA Storage

Product Specifications

Supported Modules

Jetson Nano™ / Jetson™ TX2 NX

Video

Max. Image Resolution:

2616H x 1964V (5MP)

Video Stream Codec:

H.264 | H.265 supported

Bit Rate Control:

CBR / VBR

Camera

Image Sensor:

AR0521(1/2.5") from ON Semiconductor

WDR:

Digital WDR

Day/Night Mode:

N/A

Lens

S/N Ratio:

40 dB

Focal Length:

3 mm

Field of View:

140.5°(D) x 110°(H) x 82°(V)

Focus Control:

Fixed

Aperture:

F2.8

Iris Control:

Fixed

Network

Ethernet:

1x GBE through RJ45 connector

Protocol:

IPv4, IPv6, TCP, UDP, ARP, HTTP, HTTPS, DNS, RTP/RTCP, RTSP

General

Operating Temperature:

-20 ~ +60℃

Operating Humidity:

10% ~ 90%

Power Input:

FixeDC Jack 12V / POE+ (IEEE 802.3at) * Does NOT support IEEE 802.3afd

Power Consumption:

30W Max

Expansion:

Optionally support GNSS feature. (33 channels support GPS L1 C/A,GLONASS L1 C/A, Beidou B1 C/A, QZSS)

Mechanical

Dimension:

256(L) x 95(W) x 84(H)mm

Housing Material:

Aluminum

Weight:

850g

Certification

CE / FCC / RoHS / NEMA / IP66

Supported Modules

NVIDIA® Jetson™ Nano | TX2 NX |  Xavier™ NX

Video

Max. Image Resolution:

2616H x 1964V (5MP)

Video Stream Codec:

H.264 | H.265 supported

Bit Rate Control:

CBR / VBR

Camera

Image Sensor:

AR0521(1/2.5") from ON Semiconductor

WDR:

Digital WDR

Day/Night Mode:

N/A

Lens

S/N Ratio:

40 dB

Focal Length:

3 mm

Field of View:

140.5°(D) x 110°(H) x 82°(V)

Focus Control:

Fixed

Aperture:

F2.8

Iris Control:

Fixed

Network

Ethernet:

1x GBE through RJ45 connector

ONVIF:

Profile S

Protocol:

IPv4, IPv6, TCP, UDP, ARP, HTTP, HTTPS, DNS, RTP/RTCP, RTSP

General

Operating Temperature:

-20 ~ +60℃

Operating Humidity:

10% ~ 90%

Power Input:

DC Jack 12V / POE+ (IEEE 802.3at) * Does NOT support IEEE 802.3af

Power Consumption:

30W Max

Expansion:

Optionally support GNSS feature. (33 channels support GPS L1 C/A,GLONASS L1 C/A, Beidou B1 C/A, QZSS)

Mechanical

Dimension:

95mm x 84mm x 256mm

Housing Material:

Aluminum

Weight:

850g

Certification

CE / FCC / RoHS / NEMA / IP66

Connectivity

Ethernet:

1x GBE through RJ45 connector

ONVIF:

Profile S

Protocol:

IPv4, IPv6, TCP, UDP, ARP, HTTP, HTTPS, DNS, RTP/RTCP, RTSP

Downloads

SmartCam Web Preview

SmartCam Web Preview is a web application for capturing video feed from SmartCow cameras and previewing the live video stream in any compatible web browser. The tool comes preinstalled with all SmartCow cameras and is available for all SmartCow product users. The SmartCam Discovery Tool can be used to scan and discover all SmartCow cameras within the network’s local IP range.

Use Cases

smart retail use cases illustrations

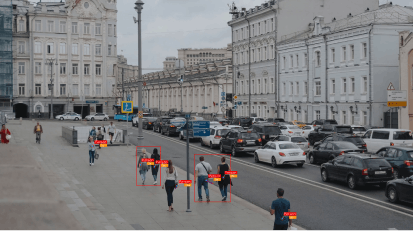

Smart Retail

SmartCam can detect face coverings (face mask detection) and people in a crowd both up close and from a distance. Facilitate rush-hour forecasting, hot spots, and dwell-time analytics.

Read more

smartfactories use cases illustrations

Smart Factories

SmartCam enables users to perform people detection, inventory status recognition for automated warehousing, access control, and more.

Read more

smart cities use cases illustrations

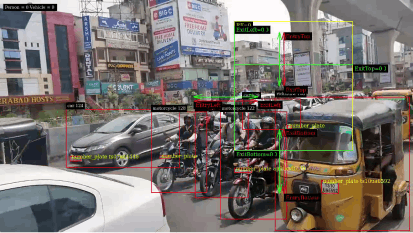

Smart Cities

SmartCam supports vehicle counting, face and object recognition, people counting, automatic number plate recognition, and more. SmartCam can be used in airports, smart stores, intelligent transportation systems, and a wide range of other applications.

Read more
